» Sản phẩm » Máy Cưa Gỗ
Detail

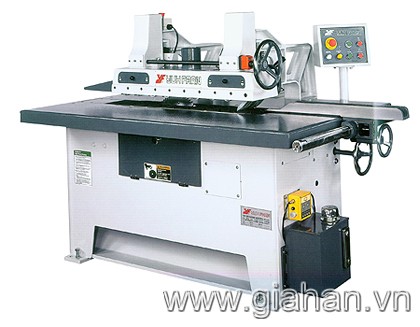

Máy Cưa Rong Lưỡi Dưới

Product code:
Loại: Máy Cưa Gỗ
Product Information


MODEL YRS-14 YRS-16
Arbor motor 10 HP 10 HP / 15HP
Saw blade diameter Ø12"-Ø14" Ø14"-Ø16"
Saw arbor diameter Ø2" Ø2"
Working thickness 70 mm 95 mm
Distance between saw & column 500 mm 560 mm
Spindle rotation 2850/50Hz, 3600/60Hz 2850/50Hz, 3600/60Hz
Feeding motor 2 HP 2 HP
Feeding speed 10~25/50Hz 9~18/50Hz
Variable (m/min) 12~29/60Hz 10~20/60Hz
Table size 1650 x 920 mm 1650 x 1050 mm
Net weight 1000 kgs 1100 kgs
Gross weight 1250 kgs 1400 kgs
Packing dimensions (L x W x H) 1850 x 1130 x 1700 mm 2270 x 1650 x 1750 mm
